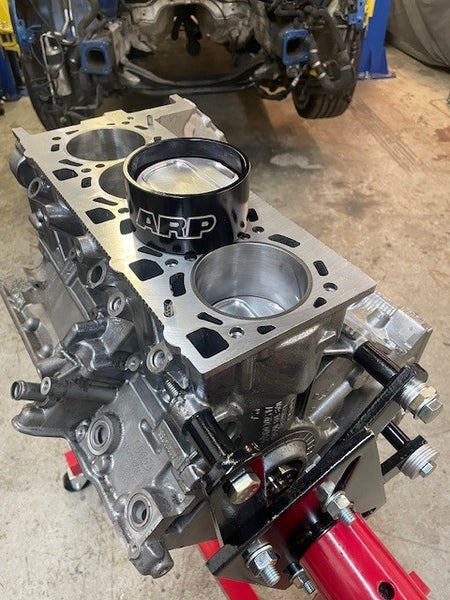

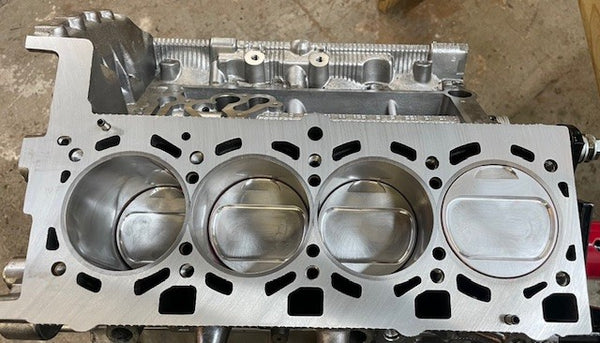

Introducing our built bare short-block packages for those looking to get the meat and potatoes out of the way, and resume the build at home. All of our bare short block offerings come sleeved with our in-house designed sleeve's for factory bore sizing. All of our sleeved block's get torque plated by state of the art techniques to ensure your bore is going to be 100% true when heads are clamped down onto them. Bores have a plateau hone finish and require minimal break in time. Our torque plate finish bore procedure is catered to the specific style of cylinder head clamping hardware you will run. These engines CANNOT run a one size fits all torque plate procedure. We have measured variances of up to 0.0010" in distortion by simply changing hardware style.
An AMTuned built bare short-block consists of the following: Sleeved block, guide frame, crankshaft w/ bearings, main bolts, outer 6mm guide frame bolts, connecting rods w/ bearings, pistons w/ rings.

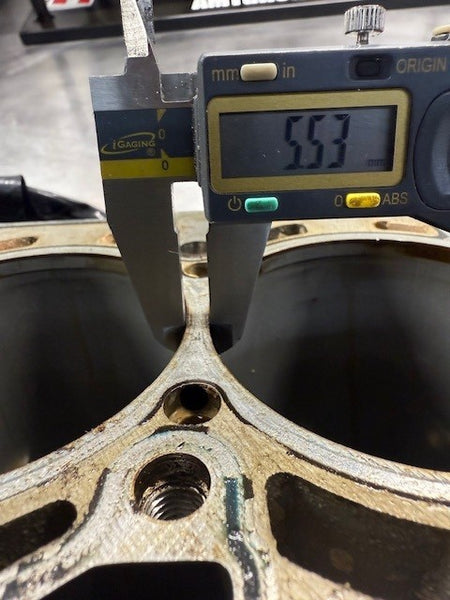

At AMTuned, we do not overbore 4.2L Audi engines. The reason being is that it compromises the structural integrity of the engine, especially on high output builds. The factory bore spacing is about 5.5mm, with a 1mm coolant passage within. This leaves roughly 2.25mm of Alusil block material between the coolant passage and combustion chamber on each bore which is not much. If we move to the next size up on bore sizing which is a 85mm bore, this removes a full 1mm of combined bore material on the bore spacing. The new measurements would be a 4.5mm bore spacing, with a 1mm coolant passage within, leaving roughly 1.75mm of material between the coolant passage and combustion chamber. Removing material on thin walled bores is never a good idea, and especially a bad one when running higher cylinder pressures on higher output builds.
When sending in your bare block to be built, we will need the following items:
Failure to supply all required items will delay your build.
Stage 0: Block, guide frame, smaller outer 6mm guide frame bolts, crankshaft, pistons, connecting rods.
Stage1: Block, guide frame, smaller outer 6mm guide frame bolts, crankshaft, connecting rods.
Stage 2: Block, guide frame, smaller outer 6mm guide frame bolts, crankshaft, front main pulley with bolts.
Stage 3: Block, guide frame, smaller outer 6mm guide frame bolts, crankshaft, front main pulley with bolts.
Ship to: AMTuned LLC, 4800 NE 12th Ave. Oakland Park, FL 33334
Our built bare short-blocks are offered in the following stages:
Stage 0: Factory sleeved refresh. Turn around time is approximately 8 weeks or less.
- Sleeved Block
- King AM series connecting rod bearings
- Mahle piston rings
- AMTuned main bearings
- OE Audi inner and outer main bolts
- Professionally cleaned and assembled
Stage 1: Rated for up to 600WHP/525WTQ. Turn around time is approximately 8 weeks or less.
- Sleeved Block
- AMTuned H-Beam connecting rods
- King AM series connecting rod bearings
- Mahle piston rings gapped for N/A and Forced Induction use.
- OE Audi inner and outer main bolts
- Processionally cleaned and assembled
Stage 2: Rated for up to 900WHP/725WTQ. Turn around time is approximately 10 weeks or less.
- Sleeved Block
- AMTuned designed JE piston 9.5:1 compression piston package
- AMTuned I-Beam connecting rods w/ 5/16" ARP hardware
- King AM series connecting rod bearings
- OE Audi inner and outer main bolts
- Fully balanced rotating assembly
- Professionally cleaned and assembled
Stage 3: Rated for 1000WHP+. Turn around time is approximately 10 weeks or less.
- Sleeved Block
- AMTuned designed JE piston 9.5:1 compression piston package
- Pauter X-Beam connecting rods w/ 3/8" ARP hardware
- King XP Series race coated bearings
- OE Audi Inner and outer main bolts
- Fully balanced rotating assembly
- Professionally cleaned and assembled
