Customers now have a trusted source to get their 3.0L & 2.9L EA839 Turbocharged engines rebuilt to extract new life out of them. Send your long block to us for our world class full engine rebuild. Curious about our rebuilds? Ask around about us! We have the knowledge and expertise required to deliver a superior rebuild all while having fixed public pricing. Outside of North America? We help customers worldwide! Our running rebuilds are bringing smiles per gallon in 5 different continents.
We offer inspections free of charge for engines that are rebuilt. In the slim unfortunate event that your engine is not able to be rebuilt, we can source core parts for purchase. If you would like a basic inspection and tear down and not proceed with the engine rebuild, our charge is $750.00. The engine will not be re-assembled.
Customers must establish contact prior to shipping. Purchase of the desired engine rebuild stage in full is required before work begins. Shipping to or from our facility is not included. Local drop off and pick-up is available free of charge. Never shipped an engine? Let us help guide you through the process! We typically see shipping rates between $275-$500 one way within the continental United States. We recommend using www.goship.com
Long blocks are to be delivered to us without accessories. Accessories include: Oil Filter Housing, Water Pump, Power Steering Pump, A/C Compressor, Alternator, Accessory brackets, Oil Cooler, Exhaust Manifolds, Engine Mounts, Knock Sensors, intake manifolds, Fuel Rail's & lines, Injectors, Coil Packs, and Cam Sensors. Spark plugs can be left in the engine, but rebuilds will not include spark plugs.
Our engine rebuilds will REUSE your timing phasers. If your engine is known to have timing phaser issues, please contact us so that we can arrange for them to be replaced at an additional cost. We do not accept any liability on rebuilt engines with variable phaser issues.
We offer a 24 month warranty for any of our stage engine builds. We do not warranty tuning/fueling/maintenance related damage to the engines. Please ensure you are using new fuel injectors on all engine rebuilds as we do not cover fuel injection related failures. Our warranty does not cover any labor or parts to install/remove the engine from the vehicle or transportation to our facility. All warranty work is only available at our facility. Inspections on any warranty work are free of charge regardless if the engine is warrantied or not. Any approved warranty work will include free shipping back to customers located within the continental USA.
Engines must be shipped directly to our facility at the following address. Purchase and tracking needs to be completed and sent to AMTuned prior to engine arrival.
AMTuned LLC
541 S Flagler Ave. Unit # A-West
Pompano Beach, FL 33060

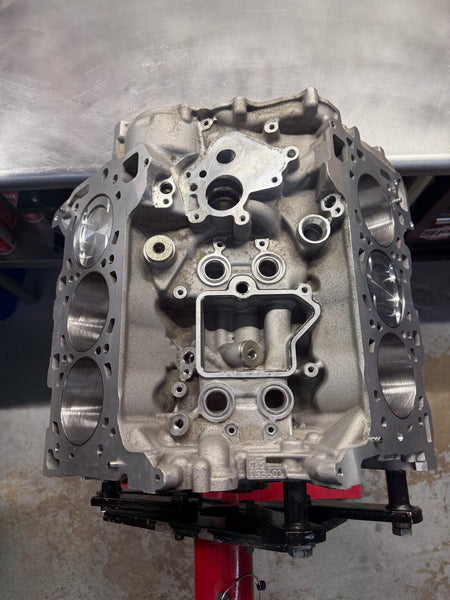

We are the only company in the world utilizing our proprietary block prep service. This in-house developed service allows us to run a factory bore size and not cheat by using a smaller OD sleeve and a tiny piston. This results in engines that are more powerful with factory displacement over the competition. Our service removes the risk of the vapor ports between the bores cracking behind the sleeves and leaking coolant down into the crankcase. Below is a picture of a block that did not have our block prep service. We removed the sleeves to find cracked coolant passages between the bores and visible signs of coolant entering the crankcase. Pictured is a flanged type sleeve, we use straight cut sleeves in the 3.0L & 2.9L turbo variants.
AMTuned Sleeved Engine STAGE 0:. TURN AROUND TIME IS ABOUT 10-12 WEEKS AFTER PASSED INSPECTION.

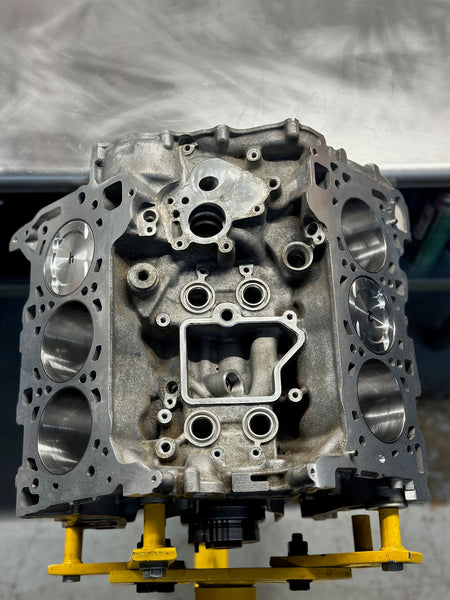

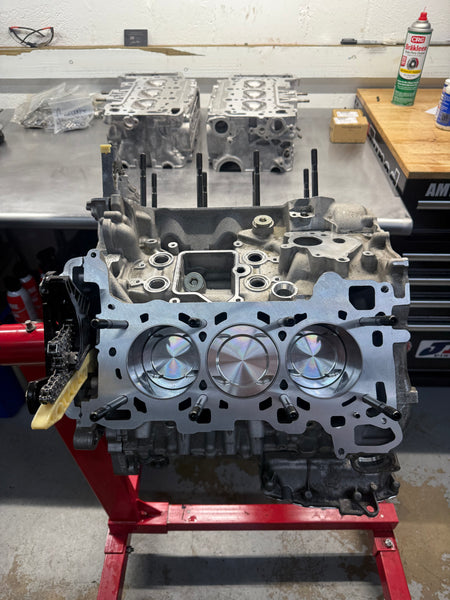

- Fully re-sleeved block with straight cut factory style sleeves, finished with a plateau hone which requires virtually no break in time.
- Final bore finishing with torque plate.
- Complete timing service utilizing OEM & OE parts.

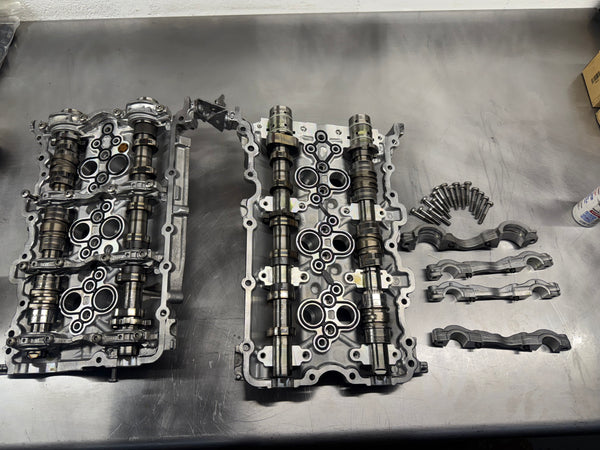

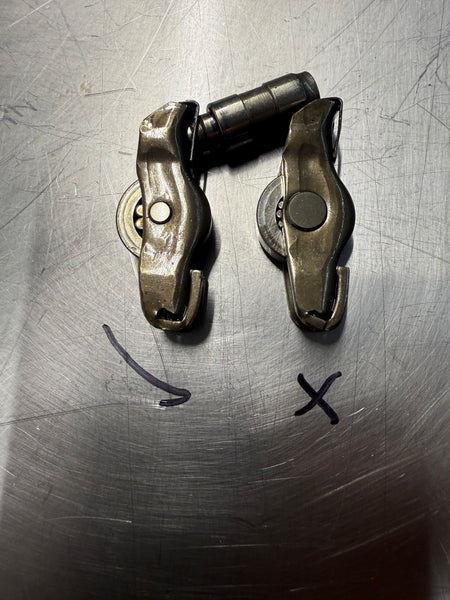

- Cylinder head refresh including cleaning and inspection. Replacement items include new rockers regardless of year/model, new guides, upgraded valve guide seals, and gaskets. Valves will be tested to ensure they are true, replacement valves will be invoiced as needed. Cylinder head mating surface will be skimmed to ensure optimal sealing during install. Valve seats will be cut, and assembled heads are pressure tested.
- Replacement items include main bearings, connecting rod bearings, piston rings, all engine o-rings, gaskets, and seals, timing tensioners/rails, valve guides, valve guide seals, TTY bolts.
AMTuned Engine Stage 1: For those that want stronger pistons, a upgraded valvetrain, and head studs to push past some factory limits while having more safeguards. Turn around time is about 12-15 weeks after passed inspection. Includes everything in our Stage 0 package with the addition of:

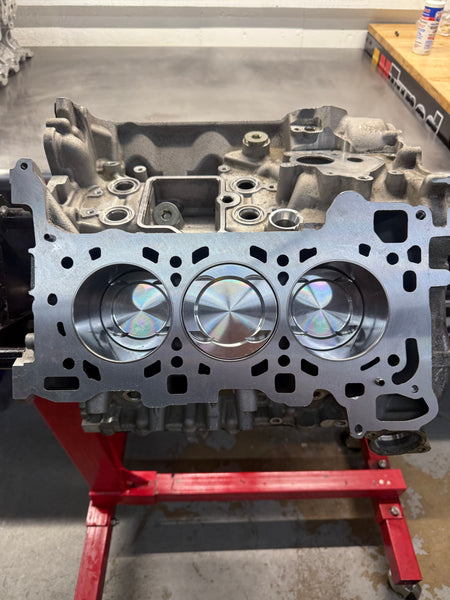

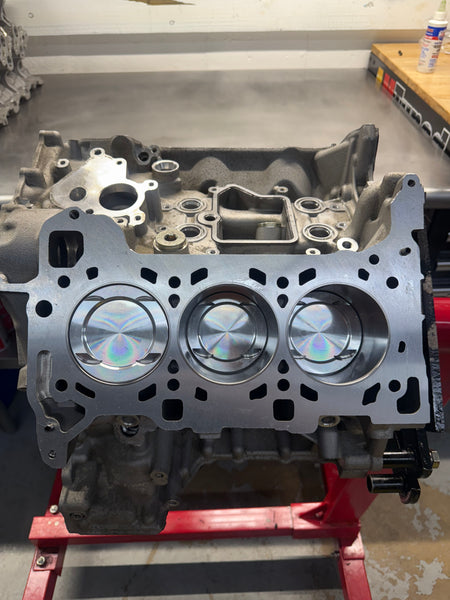

- JE Pistons AMTuned Spec 9.5:1 Compression Ratio
- Supertech Performance Valves
- Supertech Beehive Performance Spring Package

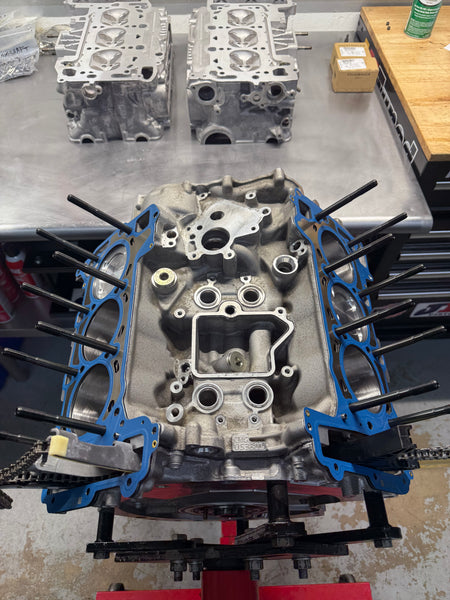

- Head Stud Package
AMTuned Engine Stage 2: For those looking to run large custom power adders. Turn around time is about 12-15 weeks after passed inspection. Includes everything in our Stage 0 package with the addition of:
- JE AMTuned spec 9.5:1 Compression Piston Package
- Saenz Performance 4340 Connecting Rod package.
- Head Studs
- Main Studs
- Supertech Performance Valves
- Supertech Performance Beehive Valve Spring Package
